making my own overshot cards...

Post by hawcer on Thu Jul 07, 2011 11:45 am

I was bored this morning waiting for some parts to arrive, so I started meddling with making different overshot cards.

I looked for various pipes,tubes fittings that was the same diameter of the interior diameter of a typical 12 gauge hull. I ended up with a steel spacer bushing from something that had the correct outside diameter....all I had to do was dremel around the inside edge to make it sharp enough to cut through cardboard. All it took is a light smack with a mallet to get it to cut out a disk(using a piece of 2x4 as a backer)

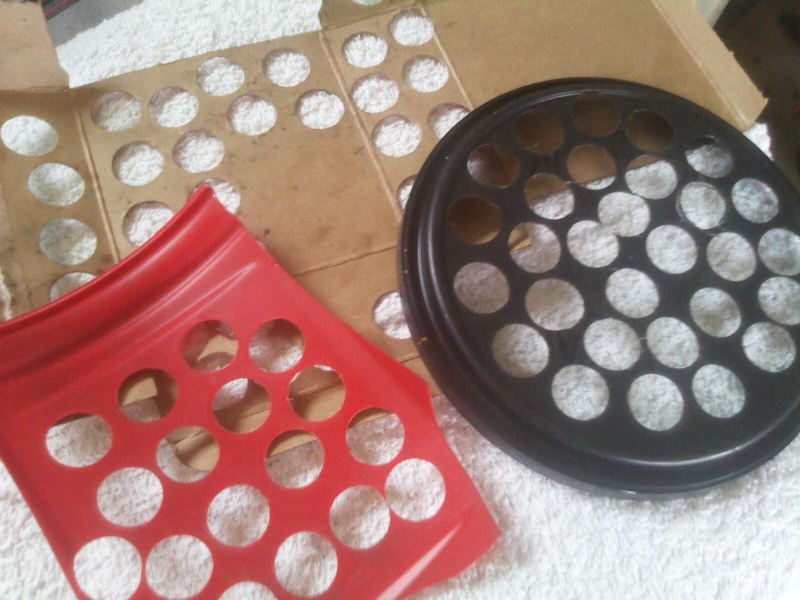

I made three variations... one out of your basic card stock type cardboard, one using a plastic lid from a coffee container and the last was using the coffee container itself. The black lid was thinner and more pliable than the cardboard and the coffee container is the most rigid. I'm sure old anti-freeze jugs and such would work just as good.

Using the different colors might help in keeping different loads separated....

A couple pictures of my boredom....






_________________
You are finally comfortable with your casting capabilities when you find yourself casting boolits with sandals on!
avatar
hawcer
Mod

Posts : 1896
Join date : 2010-11-04
Age : 45

Back to top Go down

Re: making my own overshot cards...

Post by Daywalker on Thu Jul 07, 2011 11:58 am

Very nice Hawcer. Looks like your shotshell reloading is coming along great. Looking forward to your testings...

_________________
"The Constitution shall never be construed to prevent the people of the United States who are peaceable citizens from keeping their own arms."
- Samuel Adams
avatar
Daywalker
Admin
Admin

Posts : 2324
Join date : 2010-10-18
Location : Virginia

Back to top Go down

Re: making my own overshot cards...

Post by hawcer on Thu Jul 07, 2011 12:12 pm

Thanks DW... So far testing on the the reloads I've done have been good...except for a small lot that didn't get much powder. They were more like a small wad/shot launcher than a shotgun blast,LOL. My gut hurt I laughed so much at them....

These overshot cards will come in handy for those hulls that don't want to crimp just right and look like they may dribble shot through the small opening in the middle of the crimp...

_________________
You are finally comfortable with your casting capabilities when you find yourself casting boolits with sandals on!
avatar
hawcer
Mod

Posts : 1896
Join date : 2010-11-04
Age : 45

Back to top Go down

Re: making my own overshot cards...

Post by XbonesX on Thu Jul 07, 2011 12:30 pm

when there is a hole the middle of the crimp I just melt candle wax over it.

_________________
avatar
XbonesX
Mod

Posts : 986
Join date : 2010-10-18
Location : Utah

Back to top Go down

Re: making my own overshot cards...

Post by hawcer on Thu Jul 07, 2011 1:30 pm

XbonesX wrote:when there is a hole the middle of the crimp I just melt candle wax over it.

I thought about that or a using a hot glue gun....

_________________
You are finally comfortable with your casting capabilities when you find yourself casting boolits with sandals on!
avatar
hawcer
Mod

Posts : 1896
Join date : 2010-11-04
Age : 45

Back to top Go down

Re: making my own overshot cards...

Post by eagle60 on Thu Jul 07, 2011 5:44 pm

Neat! Where there's a will there is a way - where there is no will, there's another way sunny
Good job hawcer!
avatar
eagle60
Member
Member

Posts : 971
Join date : 2011-01-02
Location : East Central MS

Back to top Go down

Re: making my own overshot cards...

Post by EdgarEg on Thu Jul 07, 2011 6:59 pm

When you are making thing like that how do you determine whether the material will leave a bad residue inside your barrel?
avatar
EdgarEg
Member
Member

Posts : 579
Join date : 2010-12-17

Back to top Go down

Re: making my own overshot cards...

Post by hawcer on Thu Jul 07, 2011 11:52 pm

EdgarEg wrote:When you are making thing like that how do you determine whether the material will leave a bad residue inside your barrel?

Most components in a shotshell are either plastic,cardboard or some type of fiber....and of course lead,steel,etc. So I'm not afraid of a thin piece of plastic or cardboard leaving a residue....but I could be wrong.

I'll tell you what...the Federal hulls I was having a hard time with the crimps on no longer had that problem when I placed a overshot card in them. Smile

I also made some from a fiber gasket material that worked great.

_________________
You are finally comfortable with your casting capabilities when you find yourself casting boolits with sandals on!
avatar
hawcer
Mod

Posts : 1896
Join date : 2010-11-04
Age : 45

Back to top Go down

Re: making my own overshot cards...

Post by Pathfinder on Fri Jul 08, 2011 12:10 am

Nice!!! Very Happy
avatar
Pathfinder
Member
Member

Posts : 409
Join date : 2010-10-18
Age : 41
Location : WestWinfield New York

Back to top Go down

Re: making my own overshot cards...

Post by kcatto on Fri Jul 08, 2011 12:46 am

very nice use of boredom..... looks great...
avatar
kcatto
Member
Member

Posts : 648
Join date : 2010-11-15
Age : 45
Location : Oklahoma

Back to top Go down

Re: making my own overshot cards...

Post by M./Karb. on Wed Feb 08, 2012 4:32 pm

If you use an overshot card under the 6or8 point crimp do you have to seat your wad slightly deeper to allow for the card space?

M./Karb.

Posts : 25
Join date : 2012-02-01

Back to top Go down

Re: making my own overshot cards...

Post by hawcer on Wed Feb 08, 2012 5:01 pm

I suppose you can do that. I use them for hulls that don't fill enough to crimp correctly or leave a hole in the center of the crimp that allows shot to trickle out. The overshot card will fill just enough space to to get a good ,even crimp.

_________________
You are finally comfortable with your casting capabilities when you find yourself casting boolits with sandals on!
avatar
hawcer
Mod

Posts : 1896
Join date : 2010-11-04
Age : 45

Back to top Go down

Re: making my own overshot cards...

Post by scorge30 on Sun Mar 25, 2012 1:29 am

That is a great use of boredom. I have made over shot cards from just about everything including milk cartons, frozen food containers, house siding (Tyvek), and various plastic food containers.

According to the guys over at Ballistic Products, the overshot cards are supposed to help patterns. Some believe the overshot cards blow patterns, but my own very non-scientific testing I did not see any difference in patterns.

However I am not the best shotgun shooter. Ducks and other fowl tend to fall out of the sky because I scared them to death not because I actually hit them.

The overshot cards are handy for adjusting crimp especially with cheap or over-used hulls. They are handy for keeping shot from escaping from a pourly crimped hull, and are damned expensive from the commerical guys.

Overshot cards are very handy when you roll crimp unless you are loading pumpkin balls. Some reason the shot just pours out of the hull when you forget the overshot card with a roll crimp. Damn nuisance to unroll the crimp and scoop all the shot up.
avatar
scorge30
Member
Member

Posts : 675
Join date : 2010-11-27
Age : 50
Location : Marysville, WA

Back to top Go down
