Core seating Die

Post by DanRickard on Fri Dec 03, 2010 2:14 pm

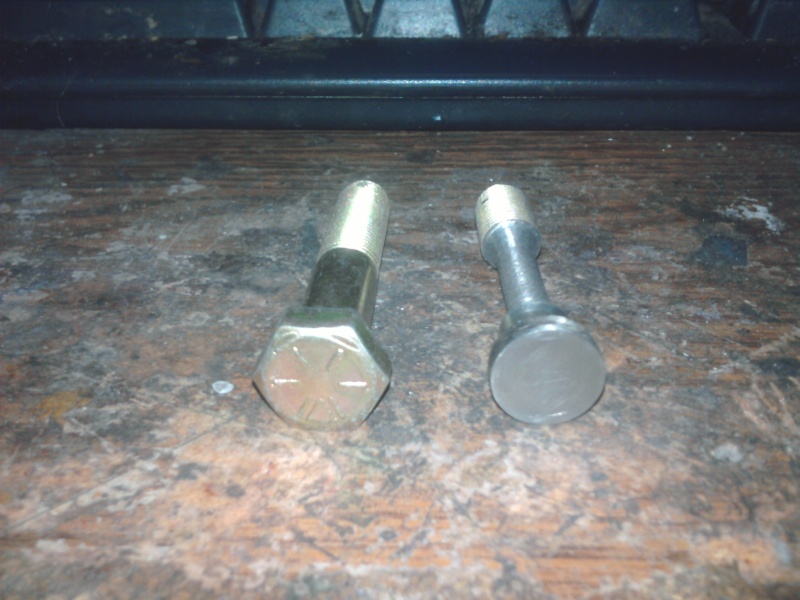

well guys.. more and more, as i thought about it, i decided to make a core seating die and punch.

took a bolt and chucked it up in my drill, and used my bench grinder to get it close to how i wanted it.





then i chucked it up in my drill press, and worked it with some files and sand paper until it was exactly how i wanted it.






next, i cut it free with a band saw, and cleaned the cut on the top, then finished the lead bleed hole through to the base.

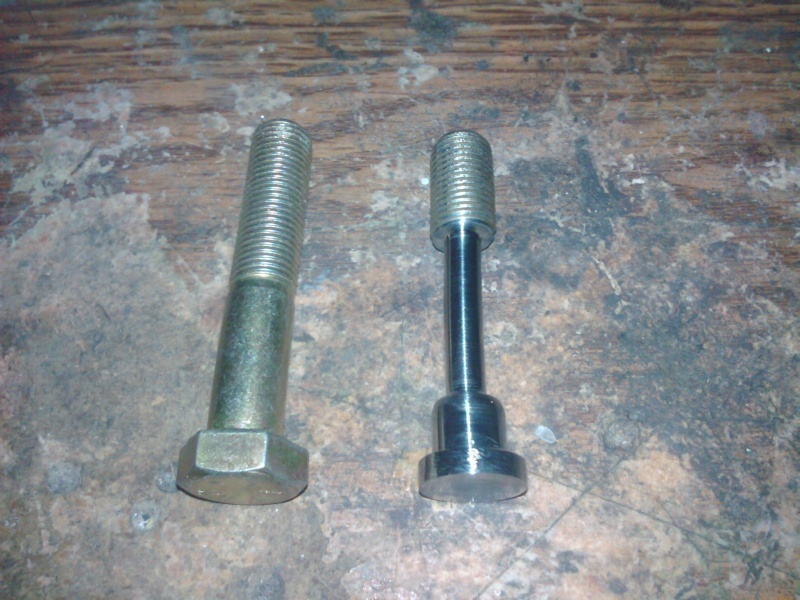

next, i took one of my die bolts with a pilot hole of .210 then cut a .224 hole through 2/3 of the way through. took a cold rolled steel bar, and turned it until it was .209 and left the base of it at .223. i tapped the end with some threads, then assembled it into the die to become the ejector punch.
the ejector punch base supports the entire bottom of the cup, so that i dont deform it while pressing lead into it.




now i just have to make a core mold to make me some core's to seat!! i'll update you all on its progress.. i'll be working on that today. with any luck the steel yard will have some scrap aluminum for me to use as a mold.

thanks,
Dan
avatar
DanRickard
Member
Member

Posts : 207
Join date : 2010-10-18
Age : 43
Location : vancouver, wa

Back to top Go down

Re: Core seating Die

Post by hawcer on Fri Dec 03, 2010 2:34 pm

Looking good! Are you gonna heat treat it to make it a little harder so it has less chance of smushing over?

_________________
You are finally comfortable with your casting capabilities when you find yourself casting boolits with sandals on!
avatar
hawcer
Mod

Posts : 1896
Join date : 2010-11-04
Age : 45

Back to top Go down

Re: Core seating Die

Post by DanRickard on Fri Dec 03, 2010 3:05 pm

hawcer wrote:Looking good! Are you gonna heat treat it to make it a little harder so it has less chance of smushing over?

naw.. both the punch bolt i used and the die bolt are #8 tempered already.. so no need..
avatar
DanRickard
Member
Member

Posts : 207
Join date : 2010-10-18
Age : 43
Location : vancouver, wa

Back to top Go down

Re: Core seating Die

Post by DanRickard on Fri Dec 03, 2010 7:29 pm

well, i ended up making a combination mold once i noticed my drill press was wondering off to one side.. i was bummed.. but made the best of it.

now, i have a steel mold that can cast 2 cores, which are long enough to make 4 bullets. then 2 cavities to hot pour lead directly into the cups.

all along, i've always been doing a hot pour into my cups, and it works out pretty well.. my current mold for doing this, is only a single cavity, so its kind of nice having a dual cavity mold to do the same thing. the two screws at the bottom adjusts where the cup sits in the mold, so that i can bring the cups up against the spur plate.

here are the pics..








now i just have to make some handles.. Smile

thanks,
dan
avatar
DanRickard
Member
Member

Posts : 207
Join date : 2010-10-18
Age : 43
Location : vancouver, wa

Back to top Go down

Re: Core seating Die

Post by DanRickard on Sat Dec 04, 2010 5:01 pm

handles are done.. made of stainless stell.. i used some cardboard to stencil them out before i cut them.



avatar
DanRickard
Member
Member

Posts : 207
Join date : 2010-10-18
Age : 43
Location : vancouver, wa

Back to top Go down

Re: Core seating Die

Post by DanRickard on Sat Dec 04, 2010 5:02 pm

but i gotta say, the next time i make a mold, it will be out of aluminum.. the steel makes a heavy f'ing mold guys..

its nice to have steel, cause its more durable.. and well, kinda easy to work with.. but the weight of it, is well.. horrible.

we'll see how it casts in a little while.

thanks,
dan
avatar
DanRickard
Member
Member

Posts : 207
Join date : 2010-10-18
Age : 43
Location : vancouver, wa

Back to top Go down

Re: Core seating Die

Post by kcatto on Sat Dec 04, 2010 5:18 pm

very nice!!!
avatar
kcatto
Member
Member

Posts : 648
Join date : 2010-11-15
Age : 45
Location : Oklahoma
